Brand Name : fm
Model Number : gutter machine
Certification : ce
Place of Origin : china
MOQ : 1
Price : 8000usd-10000usd
Payment Terms : T/T
Supply Ability : 1000
Delivery Time : 45dayes
Packaging Details : nude
Machine Weight : 500kg
Machine Size : Depend on profiles
Hydraulic Motor : 5.5KW
Thickness : 0.8 mm
| Water Rain Gutter Roll Forming Machine | |
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2.Installation Dimension (L*W*H): | 2.6m*1m*1.2m |
| 3.Main motor power | 4KW with Cycloidal reducer |
| 4.Hydraulic station power | 4KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6.Thickness of material | 0.3mm~0.8mm |
| 7.Diameter of principal axis | Φ70-90mm |
| 8.Material expand width | 300-700mm |
| 9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11.Controlling system | PLC |
| 12.Processing speed | 13-15m/min |
| 13.Processing precision within | 1.00mm (depend on design) |
| 14.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15.Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16.Roller station | 7 Rollers as drawing |
| 17.Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 1T |

|
|

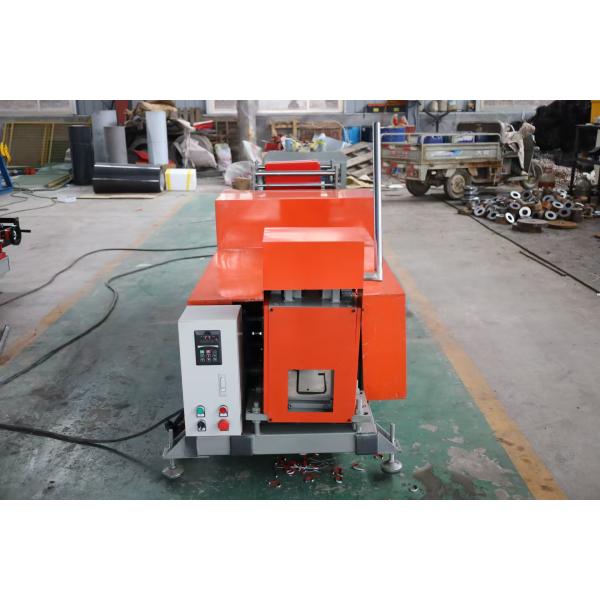

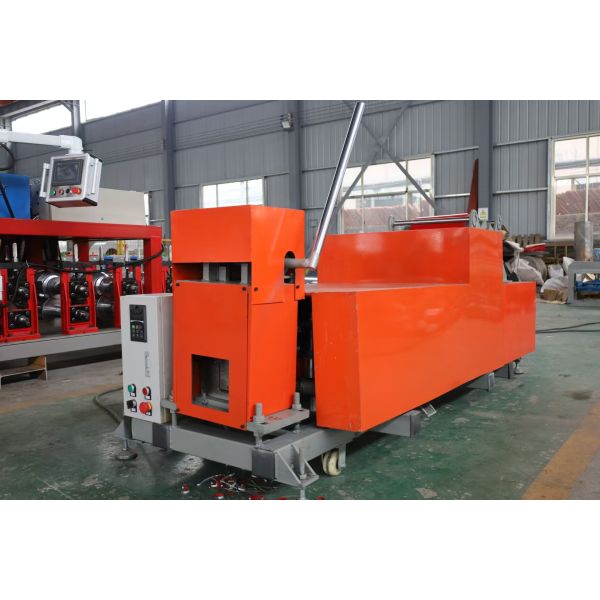

Portable Seamless Water Gutter Roll Forming Machine For Galvanized Steel Sheet Images |
